Filter/Water Separators
Dual-stage filtration arrangements for water and solids removal in fuel and liquid handling systems.
ASME CertifiedBuilt to support ASME pressure vessel requirements, including U and UM stamp capabilities.
Canadian CRNsCanadian Registration Numbers can be supported for applicable Canadian installations.
Fuel, Gas, Oil & WaterVessels for fuel, gas, oil, water and process liquid filtration applications.
Custom EngineeringConfigured around flow rate, pressure, filtration stage and site requirements.
Engineered housing solutions.
Lemico pressure vessels and filter housings are engineered to support removal of water, solids and contaminants from fuels, gases, oils, industrial liquids and water systems, helping protect equipment, infrastructure and operations.
Standards-focused fabrication.
Vessels can be built to support ASME Code Section VIII, Division 1, EI standards for fuel applications and Canadian registration requirements where applicable.
Comprehensive Filtration Solutions
Lemico pressure vessels support a wide range of fuel, gas, oil, water and industrial liquid filtration systems.

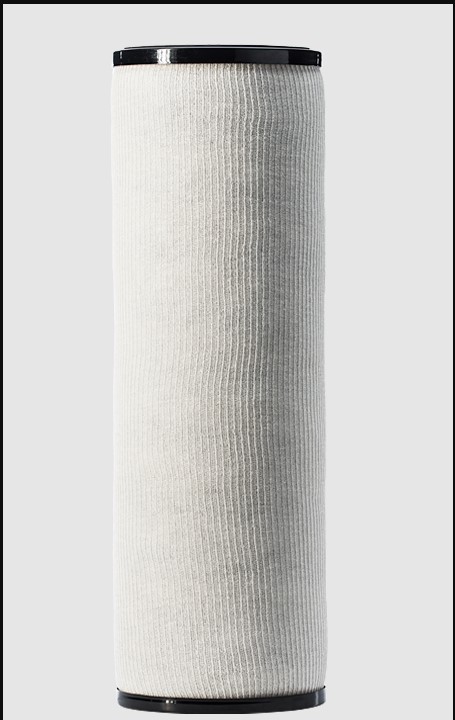

Micronic Filters
Fine particle filtration housings for fluid purity and protection of downstream components.

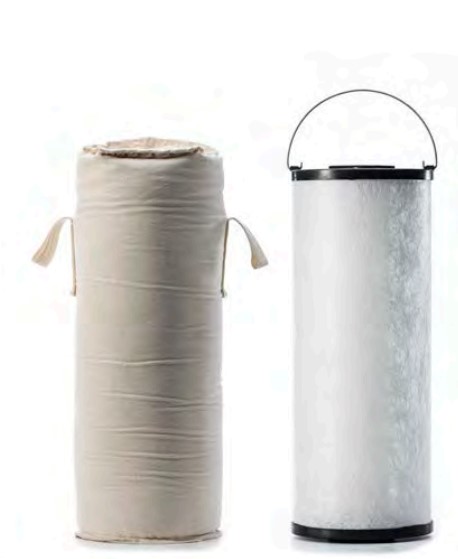

Coalescers & Clay Filters
Housing options for coalescing, surfactant treatment, color removal and specialty filtration duties.
Supported Vessel Types
Pressure vessels can be configured for multiple filtration stages and process requirements.
Bag Filters
Bag filter systems for process filtration and industrial fluid handling applications.
Filter Separators
Filter separator vessels for reliable filtration of jet fuel, diesel and aviation gasoline.
Coalescers
Coalescer housings for separating water and solids from hydrocarbon streams.
Micronic Filters
Fine particulate filtration housings for applications requiring high fuel cleanliness.
Clay Filters
Clay treatment housings for removing surface-active agents, color bodies and additives where required.
Cartridge Systems
Cartridge filter systems for industrial, environmental, water treatment and process applications.
Relaxation Tanks for Safe Transfer
Static charge control can be just as important as filtration efficiency when handling hydrocarbon fuels downstream of filters.
After-filtration hold time.
Because filtration equipment is one of the strongest static generators in a fuel handling system, filtered product often needs controlled residence time before it enters equipment with vapor space. Vertical relaxation tanks provide that hold time in a compact pressure vessel layout.
See standard relaxation tank sizes.
Lemico relaxation tanks are designed around product, flow, pressure and operating requirements, with standard reference sizes available from 100 to 1,500 US gallons.
Standard Housing Design
Filter housings can be engineered around aviation fuel filtration standards, pressure vessel code requirements and service access needs.
Design & Construction
Housing designs can support EI 1596 design and construction requirements, with ASME Code Section VIII stamped and certified construction where required.
Vessel Construction
Welded carbon steel construction is typical, with other materials available on request depending on product compatibility and project specifications.
Design Pressure
Common design pressure is 150 psi at 250°F, with other design pressures available on request.
Connection Marking
Inlet, outlet and drain connections can be permanently marked for clear installation, inspection and maintenance.
Cartridge Mounting
Coalescer cartridge mounting can be configured with rod or screw-base styles and knife-edge cartridge mounting seals.
Coatings & Closures
Interior epoxy coating to EI 1541, prime-coated exterior, swing-bolt head closures and Buna-N O-ring closure seals can be provided.
Housing Options
Optional accessories can be selected around operating, safety, monitoring and maintenance requirements.
Air & Pressure Controls
Automatic air eliminator with check valve, pressure relief valve and differential pressure gauge options are available.
Water Management
Water slug control valve, electrical water-level alarm, water drain valves and liquid level gauge options can be configured.
Pilot Controls
Pilot control valve, pilot tester and blind cover for pilot control mounting flange can be provided as required.
Sampling & Heating
Sampling probes and immersion heaters are available for selected vessel applications and operating environments.
Access Equipment
Working platform, ladder and headlift arrangements can be reviewed for larger housings and service requirements.
Inspection Access
Cleanout and inspection connections can be included where permitted by vessel design and project requirements.

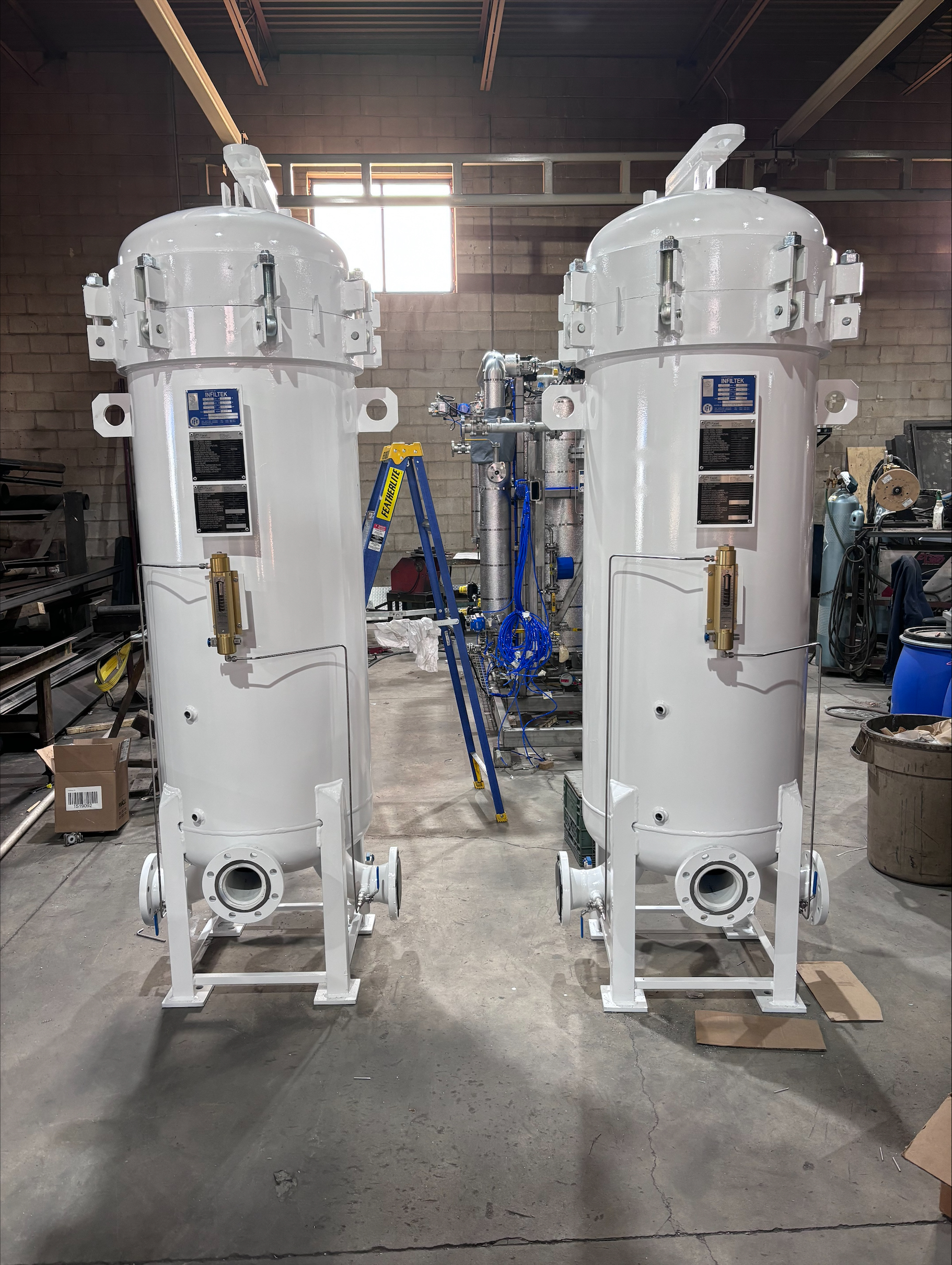

Vertical Coalescer Separators
Vertical coalescer separator housings can be configured for commercial and military aviation fuel filtration duties.
Commercial aviation fuel.
Category C, Type S coalescer separator housings are used for commercial aviation fuel applications. Type S qualification is intended for filtration points where significant levels of water and dirt may be expected in the product.
Military fuel applications.
Category M, Type S coalescer separator housings support military F24, JP-8 or JP-5 fuel filtration requirements, with configurations reviewed around system flow rate, cartridge selection and installation needs.
Horizontal Coalescer Separators
Horizontal coalescer-separator housings can be configured for military mobile fueling operations where compact, lightweight packaging and high flow rates are important.
Category M, Type S-LW.
Type S-LW coalescer-separator housings are used for military mobile fueling applications where minimal water and particulate contamination are expected. Dual-stage systems support fuel-water separation and solids removal in a compact horizontal configuration.
Mobile fueling integration.
Horizontal housings can be reviewed for Category M fuels, quick-connect system integration, field identification, cartridge stability and service access requirements.
Standards
Configured around EI 1581, 7th Edition Category M, Type S-LW applications, with EI 1596 and ASME Code Section VIII construction requirements where applicable.
Construction
Welded carbon steel construction with epoxy-coated interior for durability and corrosion resistance.
Connections
Flanged or Victaulic inlet and outlet connections can be used for quick-connect system integration.
Cartridge Mounting
Rod or screw-base coalescer cartridge mounting styles, knife-edge cartridge mounting seals and support plates can be configured.
Access
Hinged end-opening cover with swing-bolt closures supports easier maintenance access.
Controls & Options
Automatic air eliminator, pressure relief valve, differential pressure gauge, sampling probe connections and water defense system connections can be included.
Industries Served
Lemico pressure vessels and filtration systems are used across aviation, petroleum and industrial operations where fuel quality, pressure containment and reliability matter.
- Aviation: airlines, military aviation, commercial airport refueling and fuel farm operations.
- Petroleum: product distribution, terminals, refineries and transfer systems.
- Industrial plants: petrochemical, pulp and paper, plastic injection molding and process facilities.
- Utilities & OEMs: utility companies, equipment manufacturers and packaged system builders.
Other Applications
Bag filter and cartridge filter systems can be supplied for a range of process and industrial filtration requirements.
- Adhesives and resins
- Chemicals and pharmaceuticals
- Cooling towers and environmental systems
- Food and beverage processing
- Paint, paper and minerals
- Water treatment
Certifications & Documentation
Project documentation and certifications can be reviewed around the destination jurisdiction, vessel code requirements and customer specifications.
ASME U Stamp
Pressure vessel fabrication capability for applicable ASME-certified vessel requirements.
ASME UM Stamp
Miniature pressure vessel certification support for applicable vessel scope and project requirements.
CRN Support
Canadian Registration Number support for pressure vessels used in Canada, where required.
Code Basis
Vessels can be reviewed around ASME Code Section VIII, Division 1 requirements.
Aviation Standards
Jet fuel filtration packages can be configured around applicable EI standards and aviation fuel handling requirements.
Submittals
Datasheets, drawings, documentation packages and project closeout information can be supported.
How Lemico Supports Vessel Projects
1
Review Duty
Confirm fluid, flow rate, pressure, filtration stage and operating environment.
2
Define Code
Review ASME, CRN, EI and project specification requirements.
3
Configure Vessel
Select housing style, filtration media, internals, connections, drains and vents.
4
Support Delivery
Provide documentation, fabrication coordination, parts support and project handover.
Need a pressure vessel or filter housing?
Send Lemico your flow rate, pressure, fluid, filtration duty, code requirements and project documents for review.
