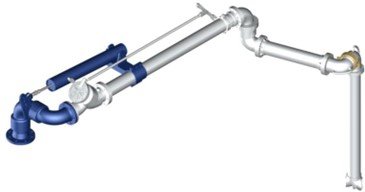

Top Loading Arms
Fixed range, variable range and long range top loading arm configurations for efficient tank filling.
Top & Bottom LoadingSmooth, controlled transfers for diverse product types and flow rates.
Custom Rack PlatformsOperator access platforms with gangways, safety cages and fall protection.
Material OptionsConfigured for petroleum products, corrosive chemicals and specialty fluids.
Safety FocusedDesigned around spill reduction, ergonomics and operating environment.
Complete loading arm systems.
Lemico loading arms are designed for top and bottom loading, providing smooth, spill-free transfers while accommodating diverse products and flow rates. Each system is engineered for durability, reliability and compliance with industry safety standards.
Built around your facility.
- Fuel, chemical, food-grade and industrial liquid handling
- Top fixed range, variable top and long range arms
- Bottom frame arms and flexible hose arms
- Loading rack platforms with safe operator access
- Turnkey systems or individual components

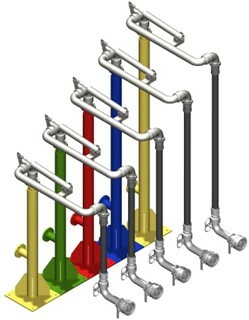

Loading Arm Solutions
Configured for the product, flow rate, connection style, reach, parking position and operator workflow.
Bottom & Specialty Arms
Bottom frame arms, flexible hose arms and specialized configurations for connection, reach and product requirements.
Loading Rack Platforms
Robust platforms with gangways, safety cages and fall protection for safe loading and unloading access.
Available Options
Common configurable options for material compatibility, reach, control, safety and certification requirements.
Materials & Seals
VITON, Nitrile/Buna N, PTFE or special VITON for BIO-products and low-temperature applications.
Flow & Pipe Sizes
Available in 3 in., 4 in. and 6 in. nominal diameters, with custom dimensions for specific applications.
Safety & Controls
Spring balancing cylinders, microswitches, proximity switches and safety breakaway couplings.
Swivels & Joints
Multiple swivel joint styles including Style 30, Style 40 and Style 50, plus intermediate or added swivels for range.
Connections & Accessories
Dry-disconnect couplings, vapor recovery couplers, vacuum breakers, drip buckets, flow deflectors and flute beak ends.
Testing & Certification
Non-destructive testing options including X-ray, liquid penetrant and magnetic testing.
More Information
Open the documents below to review common loading arm configurations, then contact Lemico to configure the correct solution for your fueling or liquid transfer operation.

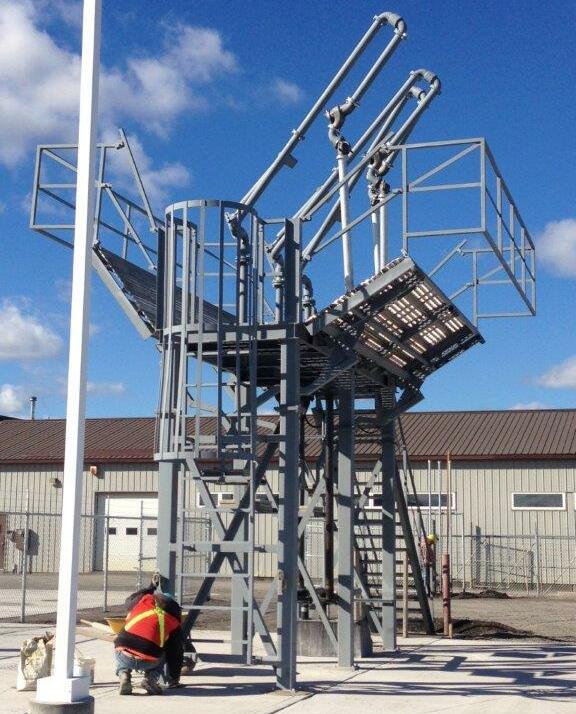

Custom-built platformsRack platforms can be designed with access stairs, gangways, cages and fall protection systems.
How Lemico Supports Loading Arm Projects
1
Review Product
Confirm fuel, chemical, food-grade or industrial product compatibility requirements.
2
Define Geometry
Review top or bottom loading, reach, parking position, pipe size and connection style.
3
Add Safety
Configure switches, breakaways, gangways, cages, drip control and fall protection.
4
Package Support
Support documents, drawings, options and project coordination for the facility.
Loading Arm FAQ
Quick answers to common buyer questions.
Which products can Lemico loading arms handle?
Fuels, chemicals, food-grade liquids and other industrial products, with materials and seals selected for compatibility.
What sizes are available?
Loading arms are available in 3 in., 4 in. and 6 in. pipe sizes.
What types of loading systems are offered?
Top loading arms, bottom and specialty arms, and custom loading rack platforms with gangways, cages and fall protection options.
Keep Exploring
Related equipment and support that often goes with this page.
Have questions about loading arms?
Send Lemico your product, flow rate, loading position, reach, pipe size and safety requirements.
