Filter/Water Separators
Dual-stage coalescer-separator arrangements for water and solids removal in aviation fuel handling systems.
Jet Fuel FocusedConfigured for jet fuel filtration and aviation fuel quality requirements.
ASME ConstructionPressure vessel construction can support ASME Code Section VIII requirements.
EI StandardsDesigned around applicable EI filtration and aviation fuel handling standards.
CRN SupportCanadian Registration Number support for applicable Canadian installations.
Engineered for aviation fuel.
Aviation fuel demands uncompromising filtration. Lemico filter housings support removal of water, solids and contaminants from jet fuel, helping protect aircraft, refueling equipment, fuel farms and airport operations.
Typical applications.
- Airport fuel farms and storage terminals
- Into-plane fueling and hydrant systems
- Jet fuel refuelers and mobile fueling packages
- Commercial, military and FBO fuel operations
- Fuel quality and polishing systems
Airport tank farm applicationAviation fuel filtration vessels and related equipment installed in a real airport fuel storage and transfer environment.
Aviation Filtration Vessel Types
Filter housing packages can be selected around contamination risk, flow rate, fuel type and installation point.
Micronic Filters
Fine particle removal housings for high fuel cleanliness and protection of meters, valves and downstream equipment.
Coalescers & Clay Treaters
Housing options for water coalescing, surfactant treatment, color removal and specialty jet fuel filtration duties.
Standard Housing Design
Housing details can be configured around EI requirements, ASME code requirements and maintenance access.
Code Construction
ASME Code Section VIII stamped and certified construction can be provided where required by the project.
EI Design Basis
Filter housings can support EI 1596 design and construction requirements and applicable aviation filtration standards.
Interior Coating
Interior epoxy coating to EI 1541 can be provided for aviation fuel service.
Closure Design
Swing-bolt or hinged closure arrangements can be configured for safe, serviceable access.
Cartridge Mounting
Rod or screw-base coalescer cartridge mounting styles and knife-edge cartridge mounting seals can be selected.
Connections
Inlet, outlet, drain, sampling, inspection and accessory connections can be arranged to suit the installation.
Coalescer Separator Configurations
Commercial, military and mobile fueling applications can require different housing layouts and qualification categories.
Vertical configurations.
Vertical coalescer separator housings can be configured for commercial aviation fuel and military fuel applications where significant levels of water and dirt may be expected.
Horizontal mobile configurations.
Horizontal coalescer-separator housings can support military mobile fueling operations where compact, lightweight packaging and high flow rates are important.
Horizontal Coalescer Separators
Horizontal coalescer separator housings can be configured for fixed airport installations, refineries, bulk terminals and mobile fueling equipment.
Fixed Installations
End-opening horizontal coalescer separators can be configured for bulk storage, terminals, heliports, airports and refinery fuel handling installations.
Commercial Aviation Fuel
Category C, Type S configurations support commercial aviation fuel systems where significant water and dirt levels may be expected.
Military Fuel
Category M, Type S configurations support military fuel applications such as F24, JP-8 and JP-5.
Mobile Equipment
Type S-LW configurations can be used for mobile applications where minimum amounts of water and dirt are expected and compact packaging is important.
High-Flow Layouts
Multiple coalescer and separator element arrangements can be selected to match required flow rate, fuel type and available installation space.
End-Opening Access
Hinged end-opening covers with swing-bolt closures support service access for cartridge inspection and replacement.
Side-Opening Access
Side-opening horizontal housings with hinged manways can be reviewed for mobile equipment layouts where end access is limited.
Marked Connections
Permanent inlet, outlet and drain markings help simplify field identification, commissioning and maintenance.
Element Sealing
Knife-edge cartridge mounting seals and internal support plates help minimize bypass risk and maintain element stability.
Compact Filter Housings
Compact single-cartridge housings can support point-of-use filtration, smaller fueling packages and tight equipment layouts.
Filter/water separator duty.
Compact housings can be configured to remove water and solids from aviation fuels where a smaller, economical filter package is required.
Microfilter duty.
The same housing style can be reviewed for micronic filtration applications where fine solids removal and simple cartridge maintenance are the primary goals.
Compact Package
Single-cartridge designs help reduce equipment footprint and can be useful on skids, carts, cabinets and small fueling systems.
Corrosion Protection
Internal and external epoxy coating can be provided for corrosion resistance in aviation fuel service.
Quick Service Closure
Swing-bolt quick-opening closures support faster cartridge inspection and changeout.
Vent & Drain Points
Vent and drain connections can be included to support safe servicing and routine sump management.
Monitoring Options
Differential pressure indicators, direct-reading gauges, sight glass connections and water probe connections can be reviewed.
Bonding Support
Bonding provisions can help reduce static charge buildup and connect the housing body to system piping.

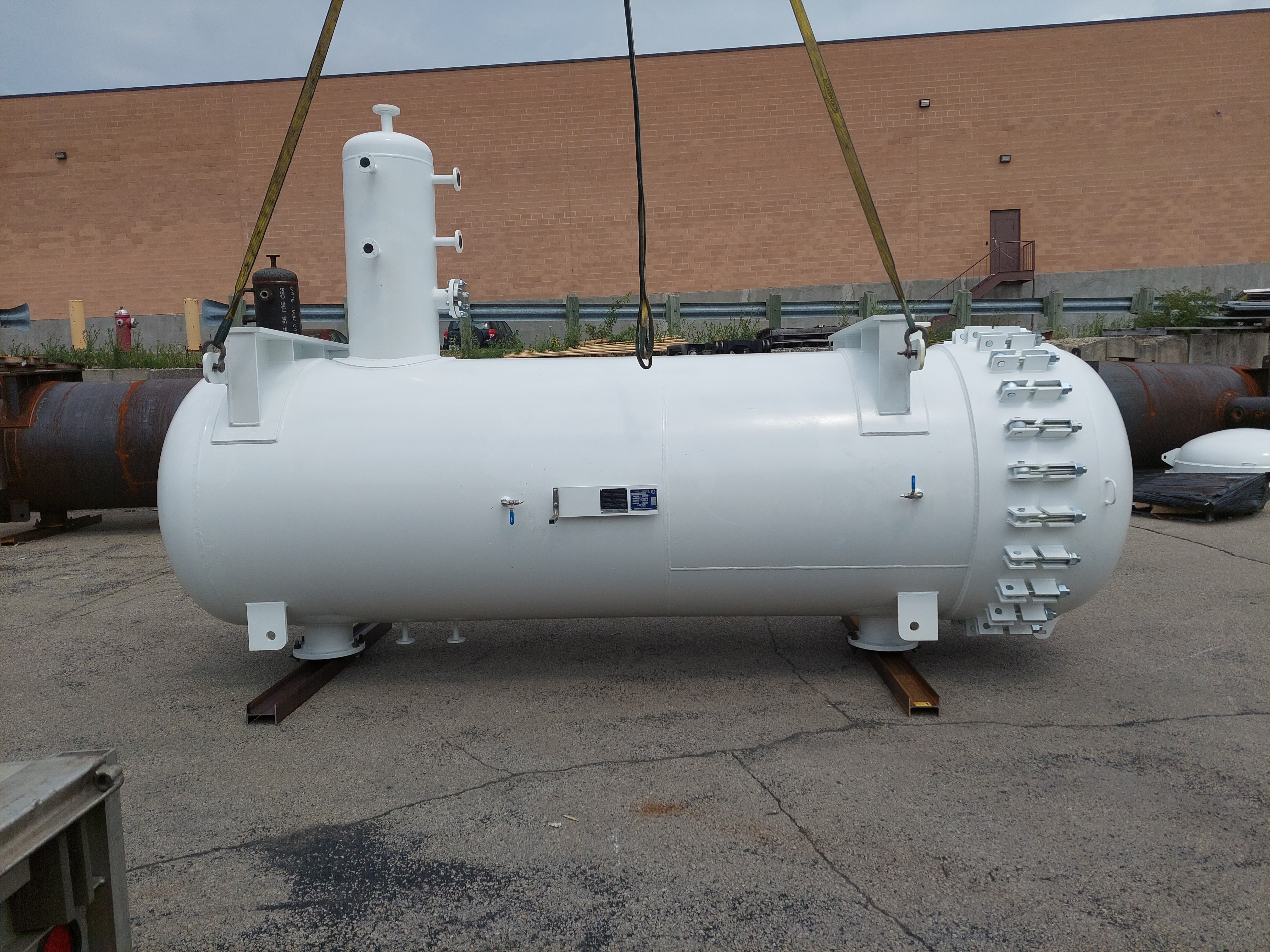

Haypack Single-Stage Coalescers
Haypack, also called repack or single-stage coalescer housings, can be used to protect downstream filtration systems from gross water and solid contamination in jet fuel handling systems.
Gross water and solids protection.
Haypack coalescer housings are horizontal cylindrical vessels designed to reduce gross amounts of water and solid contaminants commonly carried through inbound transport pipelines and transfer systems.
Simple, serviceable design.
These housings have no internal moving parts and are designed for easy servicing, helping reduce maintenance time while supporting dependable operation in aviation fuel filtration systems.
Coalescing Process
As product enters the vessel, reduced velocity allows free water and heavier solids to fall out by gravity before the flow continues through packed media or cartridge elements.
Haypack Media
Repack or haypack media can be used for gross water removal, with cartridge configurations available where more efficient solids separation and liquid-liquid water separation are required.
Flow Range
Available in multiple standard housing sizes to support a broad range of jet fuel flow rates, with final selection based on duty and project requirements.
Construction
Welded carbon steel construction with ASME Code Section VIII stamped and certified construction where required.
Connections
Typical inlet and outlet connections use raised face ANSI flanges, with other auxiliary connections arranged around venting, relief, drain, level gauge and control needs.
Options
Steel stands, internal epoxy coating, removable or hinged covers and closure arrangements can be reviewed for the selected housing size and service requirements.
Options & Accessories
Accessories are selected around operating safety, water control, monitoring and maintenance requirements.
Air & Pressure
Automatic air eliminator with check valve, pressure relief valve and differential pressure gauge options.
Water Controls
Water slug control valve, electrical water-level alarm, water drain valves and water defense connections.
Sampling
Sampling probes and sample points can be arranged for fuel quality testing and inspection requirements.
Access
Working platforms, ladders, headlift arrangements and inspection openings can be reviewed for serviceability.
Quick Connections
Flanged or Victaulic inlet/outlet connections can support system integration where appropriate.
Documentation
Datasheets, drawings, code documentation, nameplate data and project submittals can be supported.
Vessel Accessories & Documentation
Common accessories can be supplied with the vessel package or quoted as project options.
QC Data Book
Data report, inspection and test plan, material test reports, calculations and drawings for project records.
CRN Registration
Canadian Registration Number support can be quoted by model and province where required.
Air Eliminator Package
Stainless steel air eliminator, check valve and tee assembly installation for automatic air removal.
Pressure Relief Valve
Pressure relief valve package set to the required vessel design pressure, such as 150 psi when specified.
Differential Pressure Gauge
Stainless steel 0-30 psi differential pressure gauge package with installation materials.
Sample Probe Kit
Sample probe kits for fuel quality checks, typically supplied in pairs where required by the filter configuration.
Screw Plug Heater
Immersion heater options with hazardous-location terminal box for cold-weather or process requirements.
Water Probe
Electronic water probe options for water detection and monitoring in the vessel sump.
Spare Cartridge Set
Spare coalescer and separator cartridge sets can be supplied for commissioning or maintenance inventory.
How Lemico Supports Jet Fuel Vessel Projects
1
Review Fuel Duty
Confirm jet fuel service, flow rate, contamination risk and filtration point.
2
Define Standards
Review EI, ASME, CRN and project specification requirements.
3
Configure Housing
Select vessel layout, cartridge style, connections, drains, vents and accessories.
4
Support Handover
Provide fabrication coordination, documentation and parts support.
Need an aviation jet fuel filtration vessel?
Send Lemico your fuel duty, flow rate, pressure, EI requirements, ASME/CRN needs and project documents.
